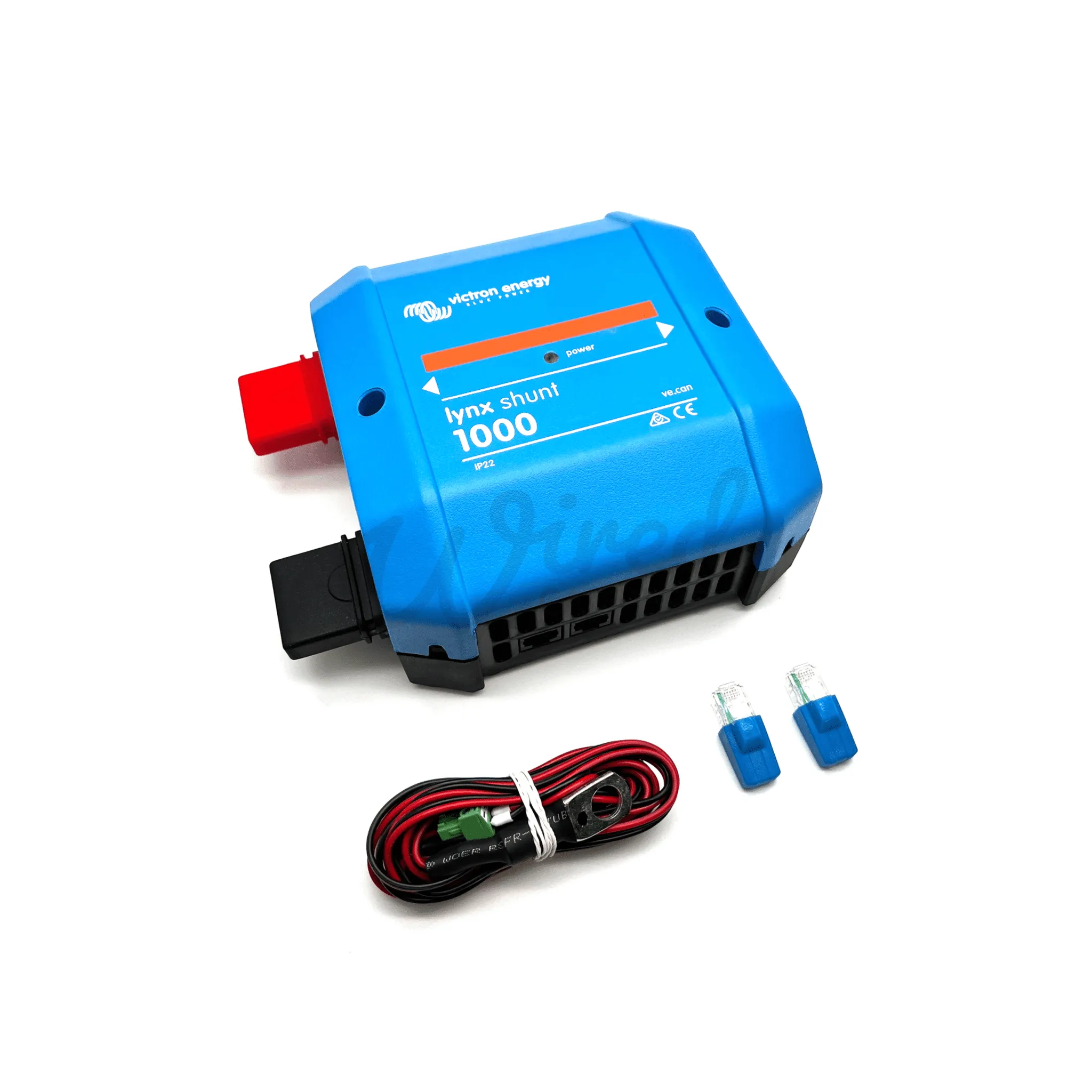

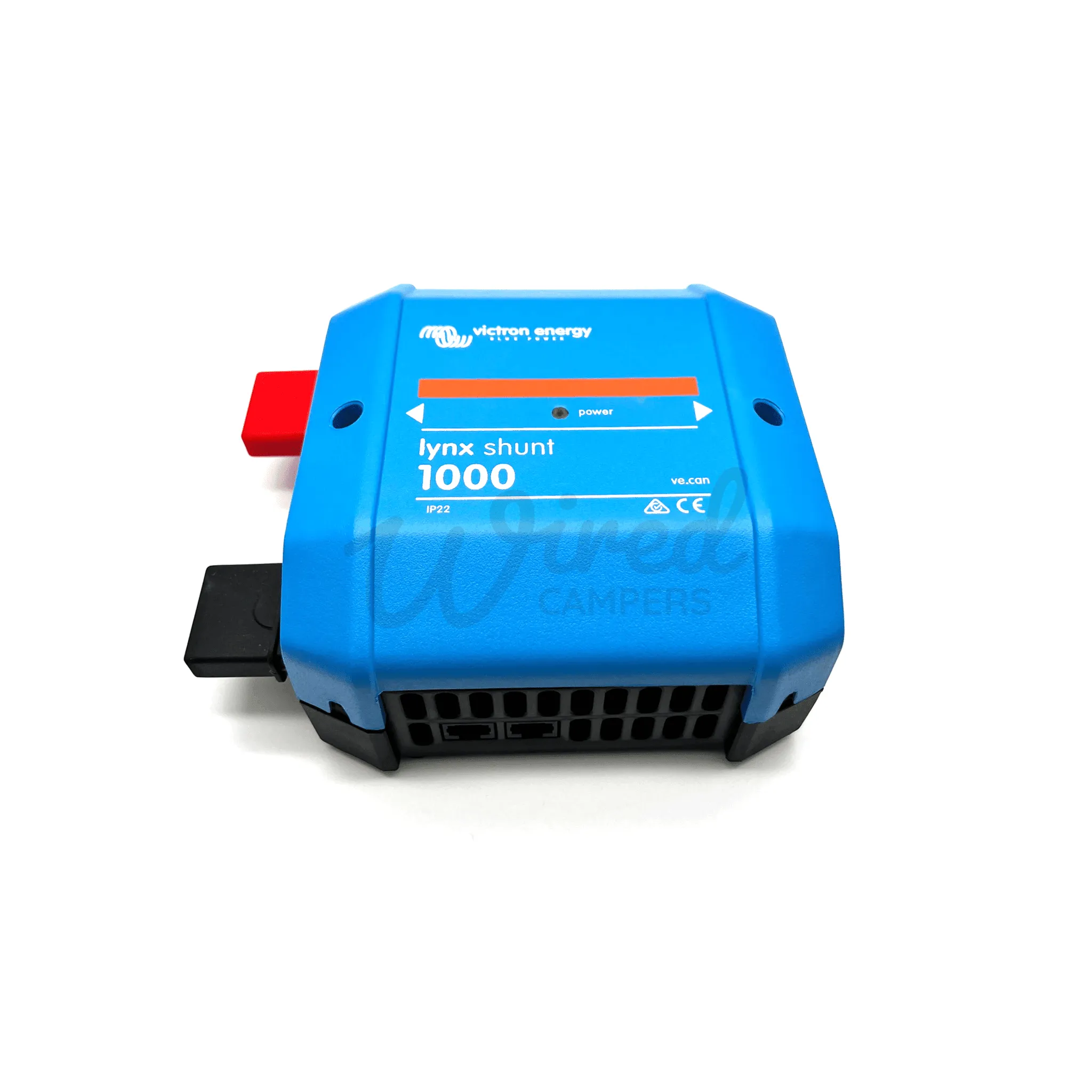

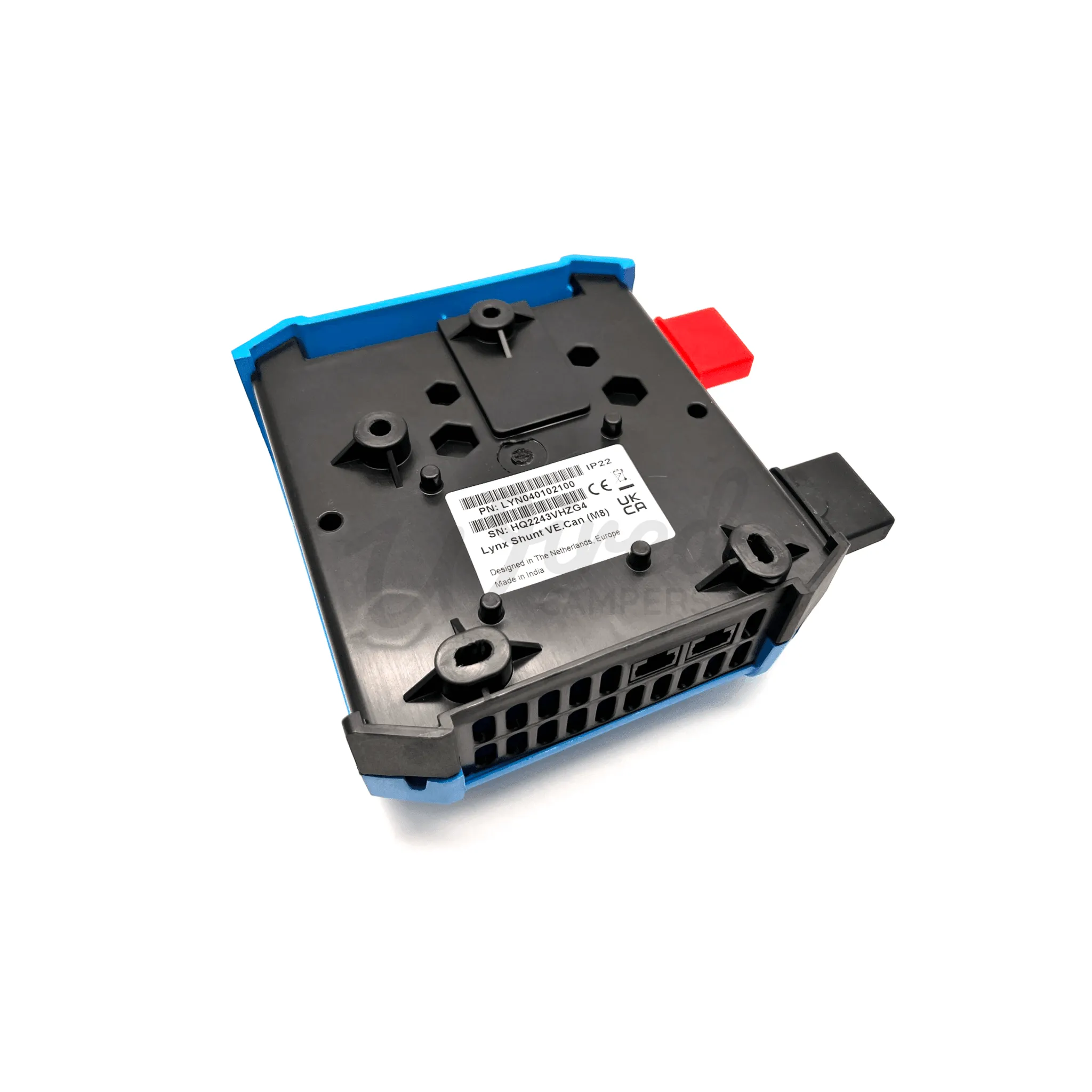

The Victron Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.

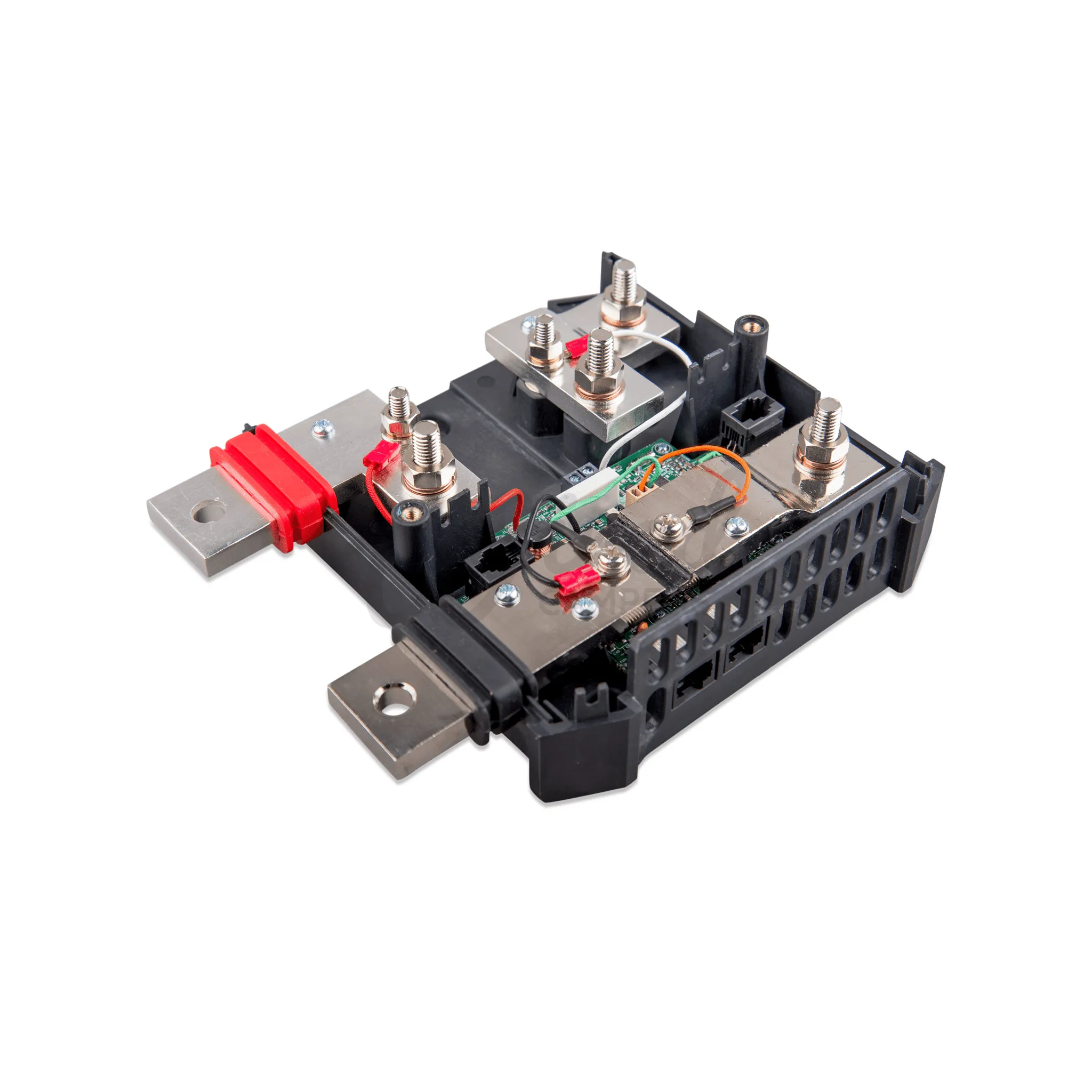

The Lynx Shunt VE.Can contains a positive and negative busbar, a battery monitor and a fuse holder for the main system fuse. It is part of the Lynx Distribution system.

TECHNICAL SPECIFICATION

• Supply voltage range - 9 - 70 Vdc
• Supported system voltages - 12, 24 or 48V
• Reverse polarity protection - No
• Current rating - 1000Adc continuous
• Power consumption - 60mA @ 12V / 33mA @ 24V / 20mA @ 48V
• Potential free alarm contact - 3A, 30Vdc, 250Vac

CONNECTIONS

• Busbar - M8
• Fuse - M8
• VE.Can - RJ45 and RJ45 terminator
• Power supply connection to Lynx Distributor - RJ10 (a RJ10 cable ships with each Lynx Distributor)
• Temperature sensor - Screw terminal
• Relay - Screw terminal

DIMENSIONS

• Enclosure material - ABS
• Enclosure dimensions - (h x w x d) 190 x 180 x 80 MM
