Name: Allison Transmission DOC Premium Initial Purchase
SKU: 230474

Product Details ＋

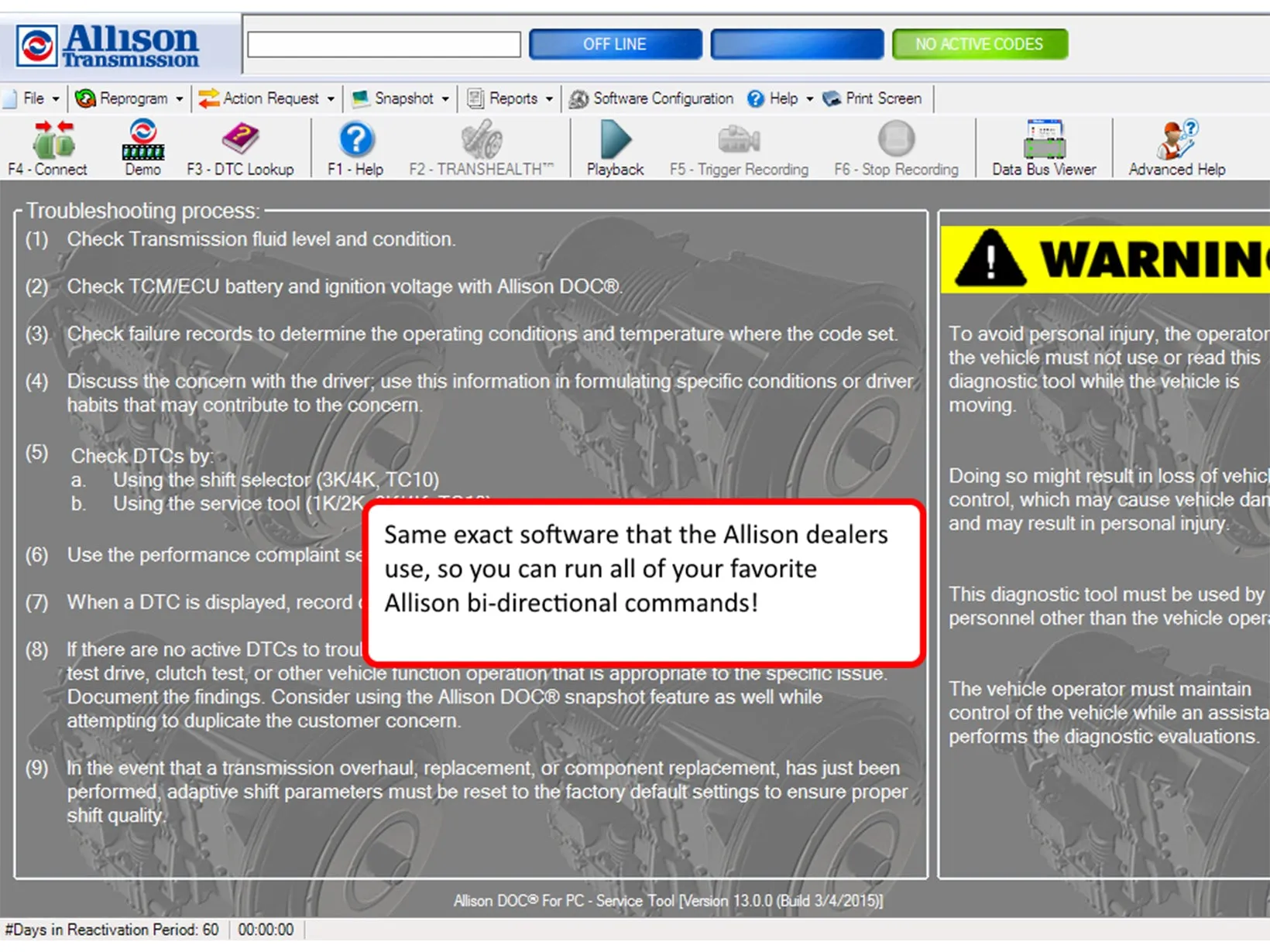

Allison DOC is the genuine OEM software used for diagnosing, troubleshooting, and programming Allison Transmissions. In January 2017, Allison has changed to a subscription based model. After this initial purchase, you will be required to purchase a renewal every 12 months to continue using the software.

Please note that a license for Allison Software can only be transferred a maximum of two times.

About the Allison Transmission DOC Premium Initial Purchase

Upon purchase and verification of payment, we will send a download link with your license key.

Features:

Security measures to control reprogramming TCM/ECU parameters
Integrated Help with training videos
Diagnostic Trouble Code information with a direct link to Troubleshooting Manuals for CEC2/CEC3/CEC5, 1000/2000,
3000/4000 and TC10 Product Families.
A demo mode using prerecorded data

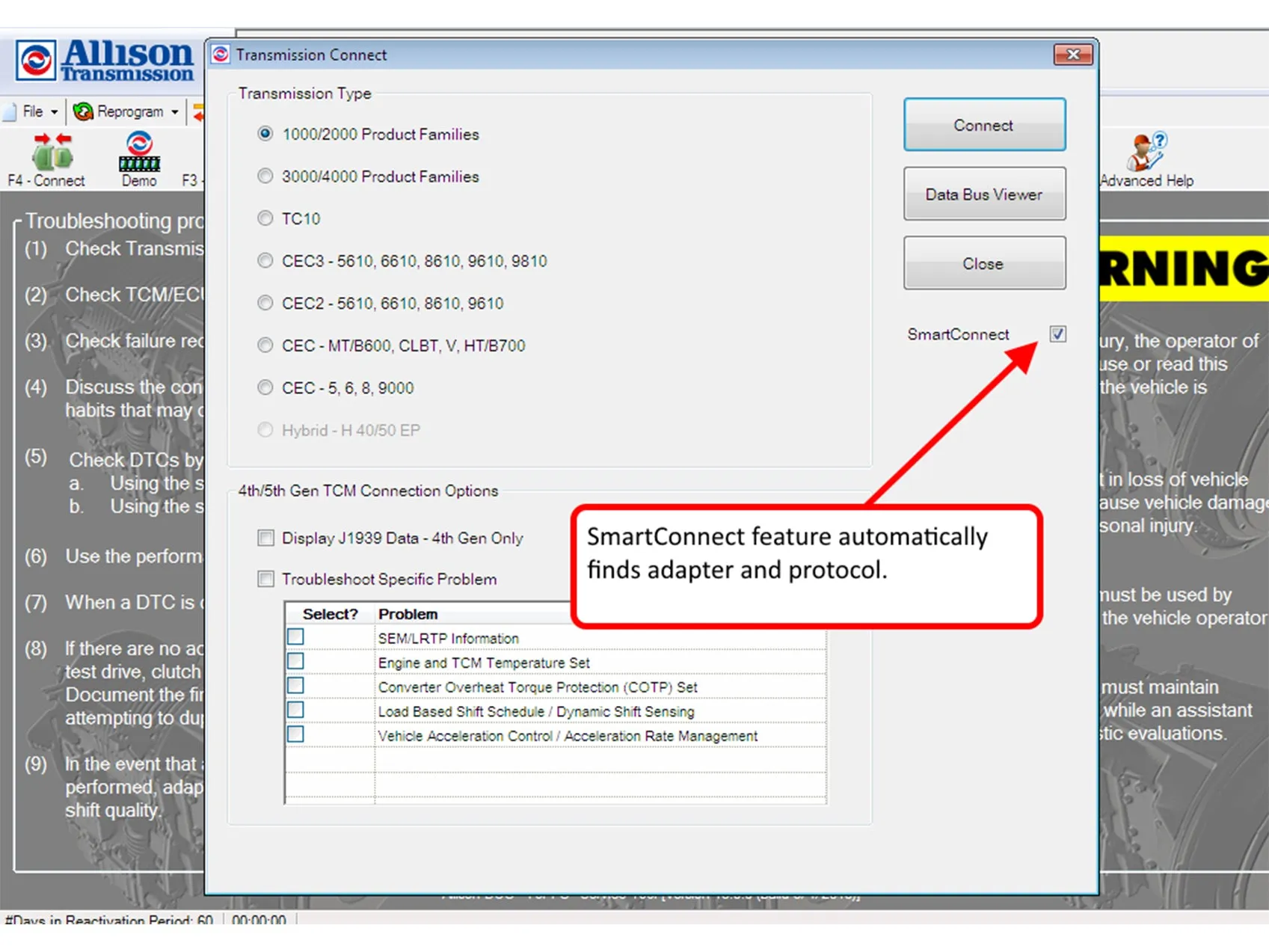

SmartConnect for detecting the PC-to-vehicle translation device and communication link
Communication troubleshooting wizard for those cases where the tool is unable to connect to a control module
Allison DOC® Premium is compliant with applicable TMC Recommended Practices, SAE Standards, and CE Standards
Allison DOC® Premium is RP1210C compliant
Adds RP1210C enhancements
Ability to auto-try channels (5th Gen / Type-2 vehicle connections) for OEMs who have wired the TCM diagnostics to CAN 2 or CAN 3
Ability to find the correct CAN data bus for diagnostics
Eliminates the need for OEM specific cross-over cables
Ability to select channel for Data Bus Viewer
Allows reprogramming of DYNAMIC SHIFT SENSING: Custom Breakpoint Setting
Allows reprogramming of RETARDER: Use Accumulator
Allows reprogramming of SHIFT SELECTORS: Preselect Time Out with password from Allison TAC
Allows reprogramming of SHIFT SELECTORS: Preselect Time Out Duration and Range when SHIFT SELECTORS: Preselect Time Out is Enabled
Adds Troubleshooting Manual for Off-Highway CEC5

See Functions and Requirements

Functions Performed:

Monitors 3000/4000 Product Families Transmission Control Module (TCM) data
Monitors 1000/2000 Product Families Transmission Control Module (TCM) data
Monitors CEC2, CEC3 and CEC5 (Off-Highway) data
Monitors TC10 data
Monitors CEC (ATEC) Electronic Control Units (ECU) data using a proprietary protocol
Displays multiple transmission parameters
Displays a graphical instrument panel with analog and digital gauges
Displays a graphical strip chart
Records and plays back diagnostic sessions
Prints diagnostic reports
Reprograms selected TCM parameters (requires completion of Allison Transmission training)

Requirements:

Microsoft Windows 10®
20 GB Hard Drive (40 GB or greater recommended)
3 GB of RAM
Monitor capable of supporting a resolution of 1280x768 or higher recommended
USB port depending on installation media
Full computer administrative privileges are required to install, use, and update Allison DOC® Premium
Internet broadband connection capability for activation/reactivation, receiving updates and file downloads
