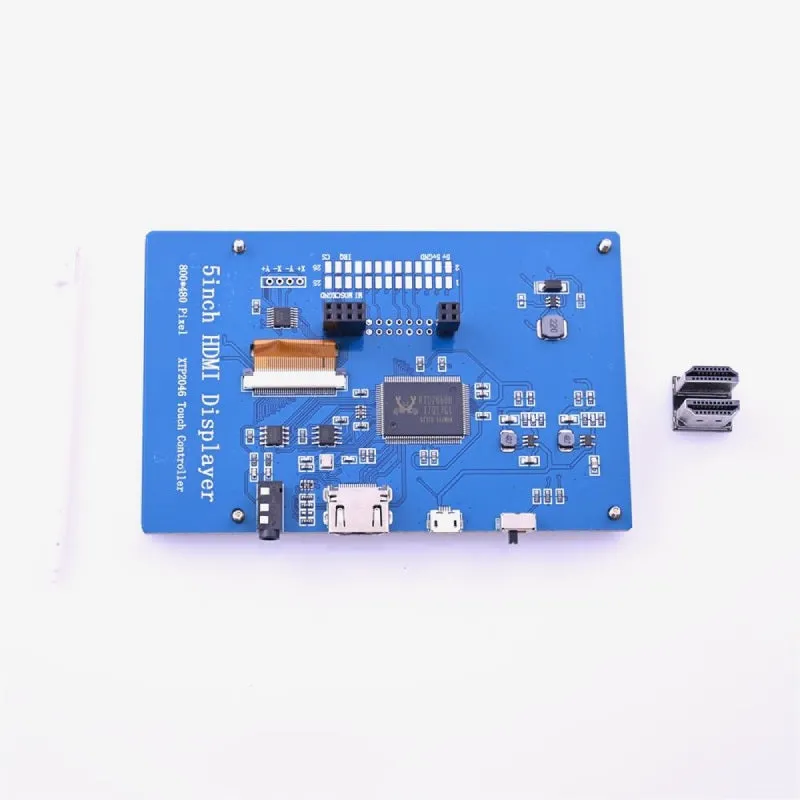

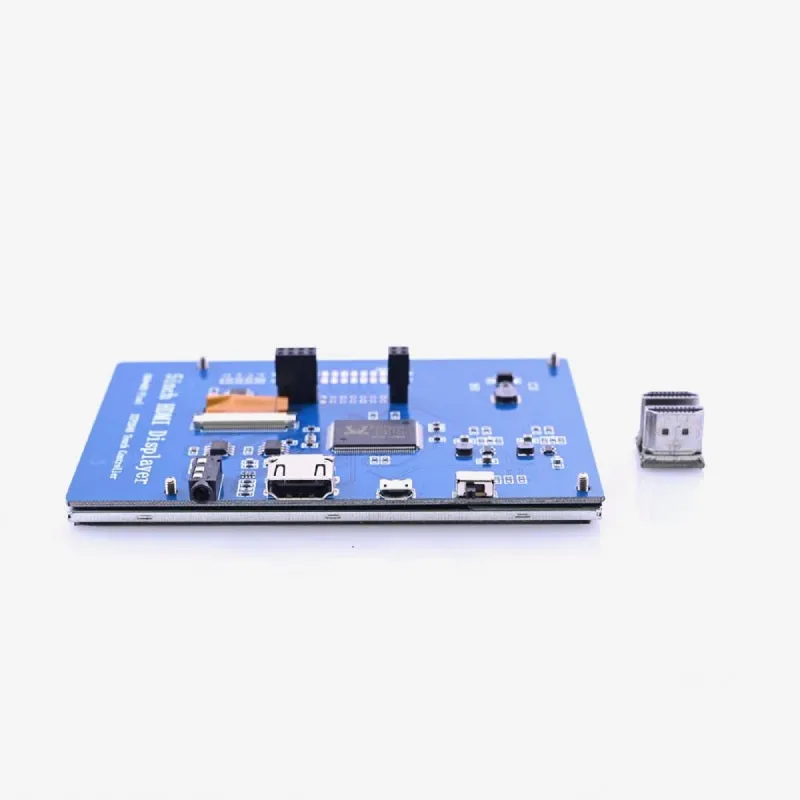

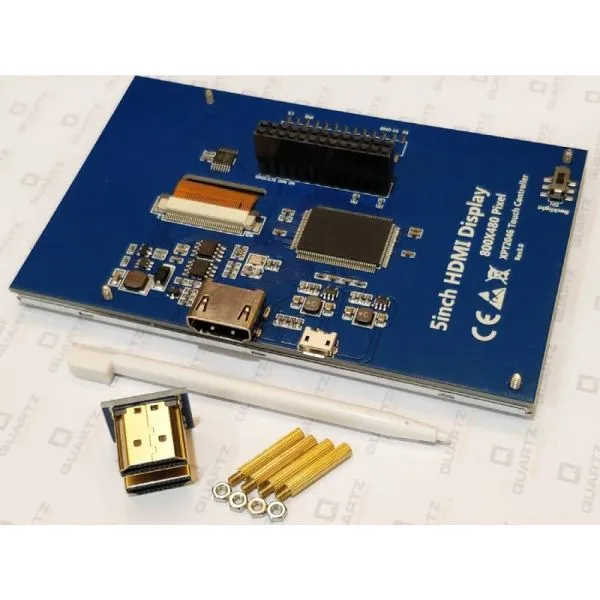

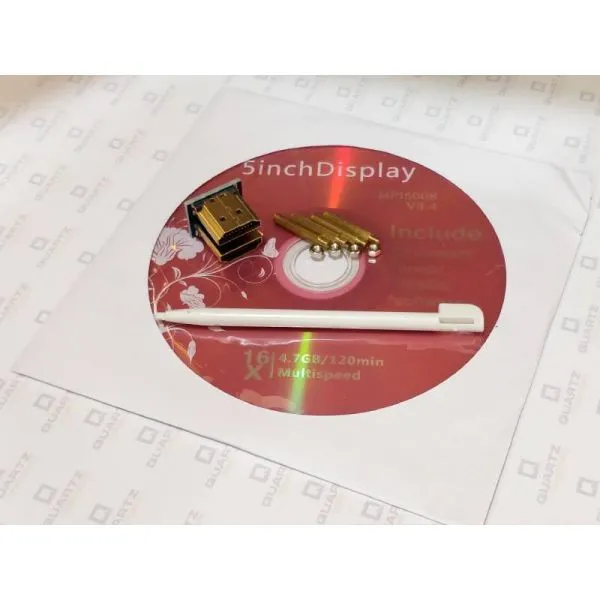

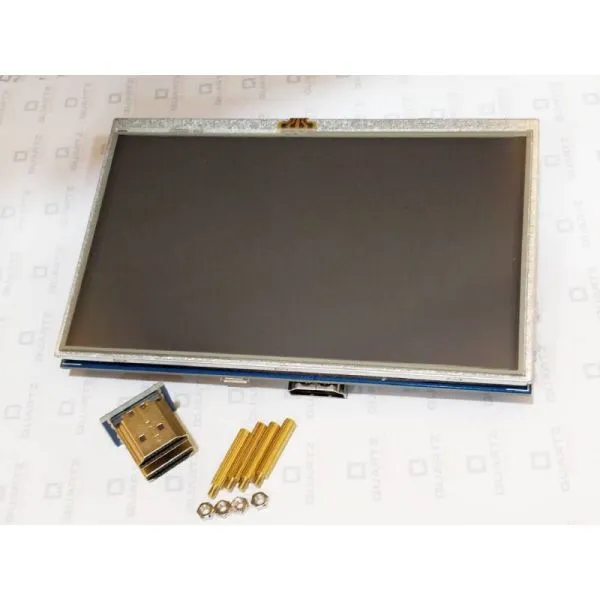

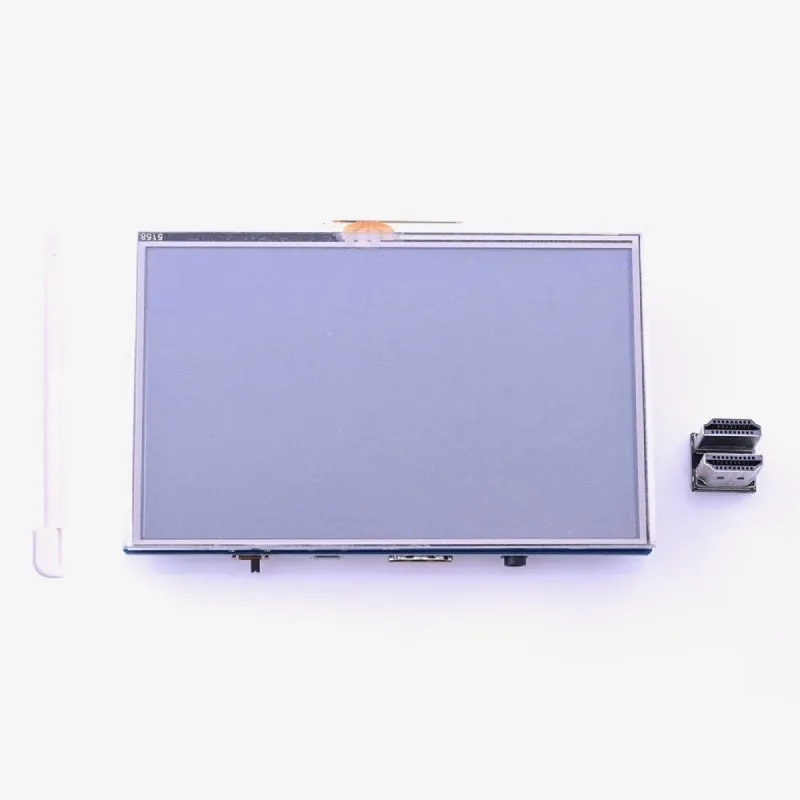

The 5 inch HDMI Monitor for Raspberry Pi display is commonly used with Pi as a display unit. It comes with driver CD, mounting screws and stylus making it easy to interface with pi and provide a professional look.
The 5 inch Raspberry Pi Screen has a resolution of 800x480 and works on 5V consuming about 235mA with the backlight on. The display signal is given through standard HDMI while the touchscreen works with SPI communication. Apart from Pi, the display can be used with any hardware like computers or tablets that support HDMI.
Pin Configuration
Pin No. | Name | Description |
1, 17 | 3.3V | 3.3V power input |
2, 4 | 5V | 5V power input |
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 | NC | Not Connected |
6, 9, 14, 20, 25 | GND | Ground Pins |
19 | TP_SI | SPI data input of Touch Panel |
21 | TP_SO | SPI data output of Touch Panel |
22 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
23 | TP_SCK | SPI clock of Touch Panel |
26 | TP_CS | Touch Panel chip selection, low active |
Features and Specifications:
- 800×480 high resolution
- Directly-pluggable into any revision of Raspberry Pi (only except the first generation Pi model B which requires an HDMI cable)
- The driver provided (works with custom Raspbian directly)
- HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
- Backlight control to lower power consumption
- High-quality immersion gold surface plating
